Application

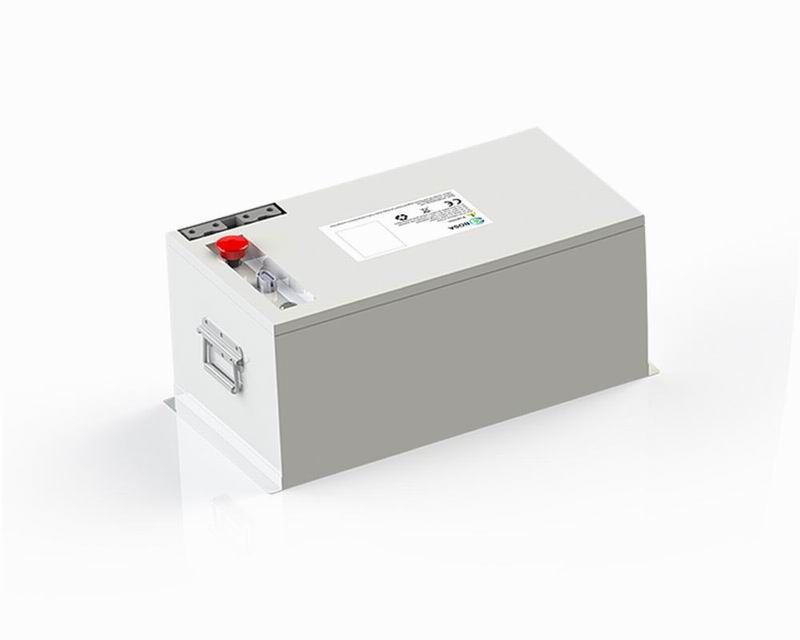

Battery pack designed for AGV
The battery system advantage:
1.vehicle-grade fresh cells, from EVE
2.The cycle life reaches 3500 times. (0.5C/0.5C 80%SOH)
3.Assembled with BMS to protect battery system, with functions of alarm protection, external control, insulation detection, voltage acquisition, etc.
4.Equipped with a buzzer to prompt the fault detected by the BMS, and emergency stop switch to immediately cut off the power supply to prevent accidents
Basic Technical Parameter
Electrical Speciafication | |
Type | LiFePo4 |
Nominal Voltage | 51.2V |
Nominal Capacity | 105Ah |
Energy | 5,376Wh |
Self-Discharge | ＜2.5% per month |
Cycle life | ＞3500 cycles @0.5C/0.5C 80% SOH, 25±2℃ |
Charge Specification | |
Standard charge | Constant current 100A. Constant voltage 29.2V, to charge current 5A cut-off @25±2℃. |
Standard charge time | Approx. 2h |
Max. Charge current | 100A |
Charge Voltage cut-off | 58.4V (1±0.2S) |
Charge temperature | 0～55℃ |
Discharge Specification | |
Max. Constant discharge | 100A |
Peak discharge current | 150A (@10S) |
Discharge voltage cut-off | 40V |
BMS discharge cut-off BMS | 44.8 |
Short circuit protection | 200-600μs |
Discharge temperature | -20～60℃ |
Mechanical Specifications | |
Dimensions(L*W*H) | 590* 300mm * 250mm |
Weight | 43.07±1kg |
Terminal type | Andersan plug |
IP protection level | IP54 |
Combination method | 1P8S |
Other information | |
Communication protocol | CAN |
Protection Function | Overcurrent protection，Overtemperature protection，overvoltage/undervoltage protection etc., |
