Adopting modular design, the battery compartment can flexibly achieve different power requirements through parallel connection.
Our modular unit can be used alone, can be used two together, also can be used three together. In case of failure of one module, the entire battery system still can work normally, this design approach ensures high reliability.
40kwh battery system for train locomotive.

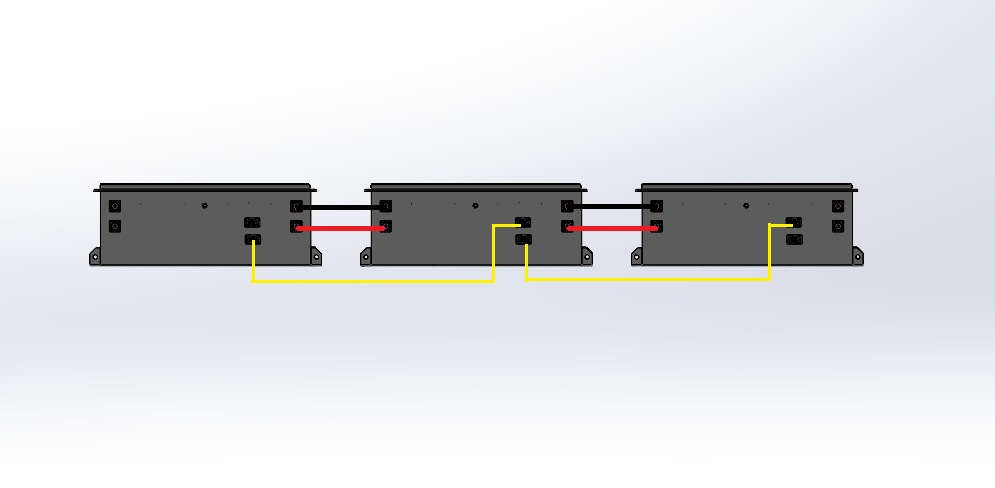

3 pcs units in parallel to reach 24V 1680AH,43kwh
Each modular unit with: | |
Voltage | 24V |
Capacity | 560Ah |
Energy | 14.336KWh |
Size(L*W*H) | 754*550*273mm |
Weight | About 130KG |
IP level | IP67 |
