1 system All-in-one system withmodular design
4 layers System protection
1 click Full system diagnosis
20 ms On-grid &off-grid switching time
24 hours Real-time cloud platformdata monitoring
6000 cycles Long cycle-life battery cell

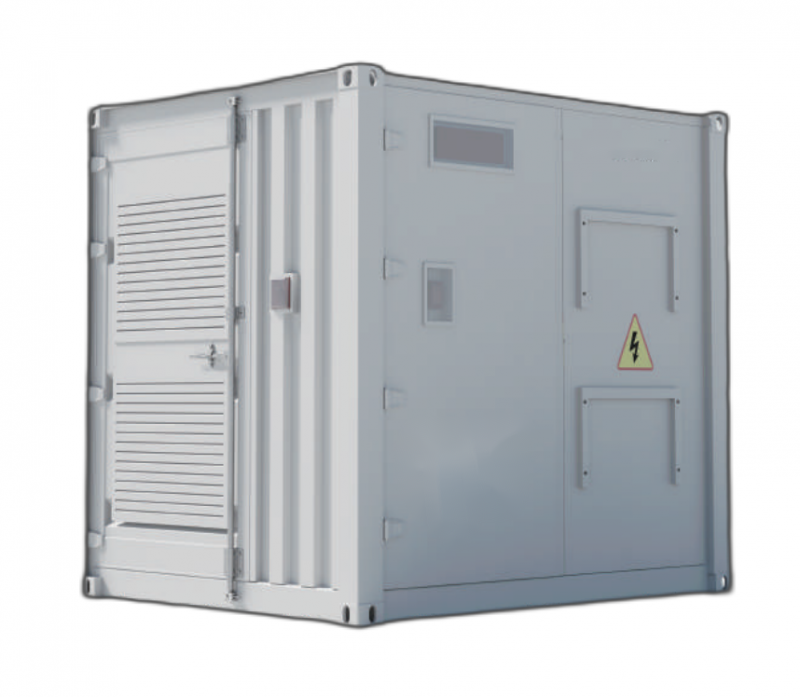

Model | BS 200k-430kWh-1F |
Specification | 200kW/430kW |
Battery Parameters | |
Module Energy | 17.9kWh |
Module Dimension&Weight | 440*912*265mm(W*H*D)145kg |
Number of Battery Module | 24 |
Nominal Energy | 430kWh |
Operating Voltage Range | 672V~864V |
Max.Charge/Discharge Current | 0.5CA0.5C |
PCS Parameters(On-Grid) | |
Nominal Power | 200kV |
Nominal Voltage | AC400V |
Nominal Frequency | 50Hz/60Hz |
Max Power | 220kW/10min |
Nominal Current | 300A |
Power Factor | Rated Power)/±1lagging /leading |
THDi | <3%(Nominal Power) |
Transformer | Optional |
PCS Parameters(Off-Grid | |
Nominal Power | 200kW |
Nominal Voltage | AC400V |
Nominal Frequency | 50Hz/60Hz |
Output Voltage Accuracy | 1% |
THDu | <1%(Linear load) |
System Parameters | |
Cooling Mode | Ar Conditioner |
Noise | 6BdB(1m) |
IP Rating | IP54 |
Altitude | 3000m(>2000m Derating) |
Temperature Range | 30℃ to 50C |
Humidity Range | 595%RH |
Output overload Capacity | 110%load@10min;120%load@1 min |
Communication Protocol | Modbus RTU /Modbus TCP |
Design Certification | EC62933, JEC626191, EC61427, IEC63056, UL1642 |
Dimension(W*D*H) | Approx.2991*2438-2896mm |
Weight | Approx.13t |
